32.768kHz¾§Õñ
| Series | Photo | Size(L¡ÁW¡ÁH)[mm] | Frequency Range | Frequency Tolerance | Operature Temperature | Data Sheet |
| SMD 2012ÌùƬ32.768kHz¾§Õñ |  | 2.0¡Á1.2¡Á0.6 | 32.768kHz | ¡À20ppm, »ò¶¨ÖÆ | -40~+85¡æ |  |
| SMD 3215ÌùƬ32.768kHz¾§Õñ |  | 3.2¡Á1.5¡Á0.75 | 32.768kHz | ¡À20ppm, »ò¶¨ÖÆ | -40~+85¡æ | |
| SMD 7015ÌùƬ32.768kHz¾§Õñ |  | 7.0¡Á1.5¡Á1.4 | 32.768kHz | ¡À20ppm, »ò¶¨ÖÆ | -40~+85¡æ | |
| 308CÌùƬ±í¾§ |  | 3.8*8.0*2.5 | 32.768kHz | ¡À20ppm, »ò¶¨ÖÆ | -40~+85¡æ | |
| 206BÌùƬÒô²æ¾§Ìå |  | 6.0¡Á2.0¡Á2.0 | 32.768kHz (30kHz~350kHz) | ¡À20ppm~¡À100ppm, »ò¶¨ÖÆ | -20~+70¡æ | |
| kHz²å¼þ¾§Õñ |  | 2¡Á6 / 3¡Á8 | 32.768kHz (30kHz~350kHz) | ¡À20ppm~¡À100ppm, »ò¶¨ÖÆ | -20~+70¡æ | |
ÌùƬ¾§Õñ
| Series | Photo | Size(L¡ÁW¡ÁH)[mm] | Frequency Range | Frequency Tolerance | Data Sheet |
| SMD 1612ÌùƬ¾§Õñ |  | 1.6¡Á1.2¡Á0.35 | 24MHz~54MHz | ¡À10ppm, ¡À20ppm, »ò¶¨ÖÆ | |
| SMD 2016ÌùƬ¾§Õñ |  | 2.0¡Á1.6¡Á0.35 | 16MHz~54MHz | ¡À10ppm, ¡À20ppm, »ò¶¨ÖÆ | |
| SMD 2520ÌùƬ¾§Õñ |  | 2.5¡Á2.0¡Á0.55 | 12MHz~54MHz | ¡À10ppm, ¡À30ppm, »ò¶¨ÖÆ | |
| SMD 3225ÌùƬ¾§Õñ |  | 3.2¡Á2.5¡Á0.70 | 10MHz~64MHz | ¡À10ppm, »ò¶¨ÖÆ | |

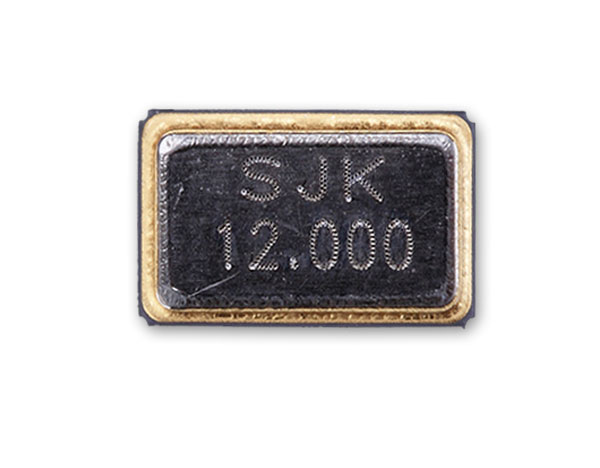

| SMD 5032ÌùƬ¾§Õñ |  | 5.0¡Á3.2¡Á0.90 | 8MHz~125MHz | ¡À10ppm, »ò¶¨ÖÆ | |
| SMD 6035ÌùƬ¾§Õñ |  | 6.0¡Á3.5¡Á1.0 | 8MHz~100MHz | ¡À30ppm, »ò¶¨ÖÆ | |

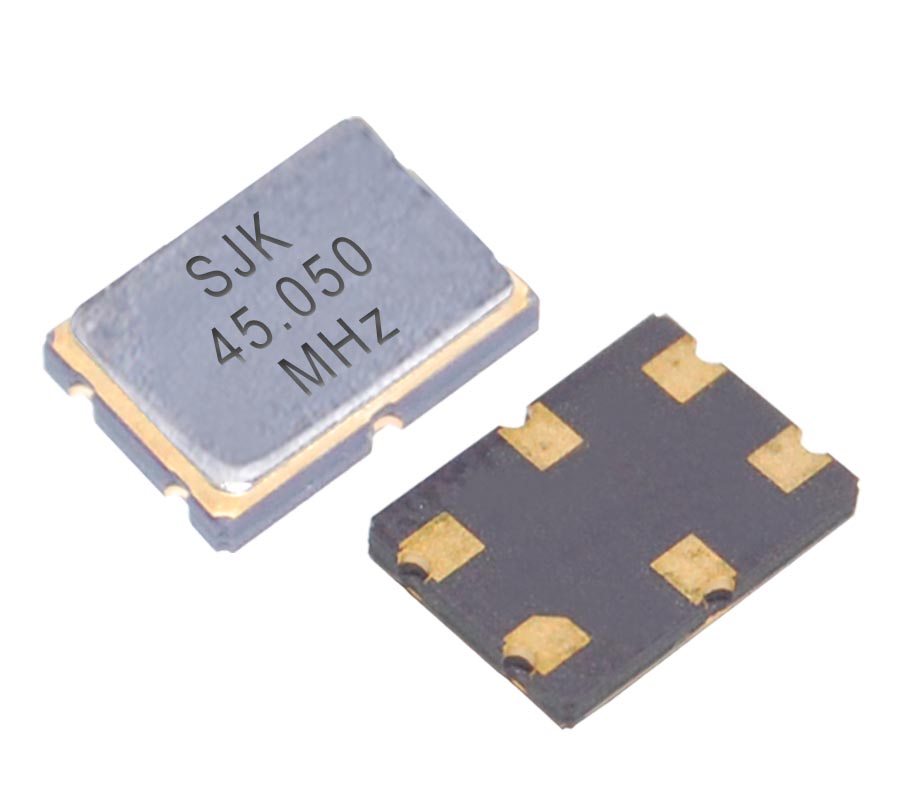

| SMD 7050ÌùƬ¾§Õñ |  | 7.0¡Á5.0¡Á1.0 | 6MHz~160MHz | ¡À10ppm~¡À50ppm, »ò¶¨ÖÆ | |
| Glass SMD 5032ÌùƬ¾§Õñ |  | 5.0¡Á3.2¡Á1.20 | 8MHz~54MHz | ¡À30ppm, »ò¶¨ÖÆ | |
| Glass SMD 3225ÌùƬ¾§Õñ |  | 3.2¡Á2.5¡Á0.80 | 8MHz~54MHz | ¡À30ppm, »ò¶¨ÖÆ | |
²å¼þ¾§Õñ
| Series | Photo | Size(L¡ÁW¡ÁH)[mm] | Frequency Range | Frequency Tolerance | Operature Temperature | Data Sheet |
| HC-49UʯӢ¾§Õñ |  | 11.05¡Á4.65¡Á13.46 | 1.843MHz~150MHz | ¡À30ppm, »ò¶¨ÖÆ | -20~+70¡æ | |
| HC-49S¾§Õñ |  | 10.5¡Á3.5¡Á3.8 | 3MHz~100MHz | ¡À10~¡À50ppm, »ò¶¨ÖÆ | -20~+70¡æ | |
| HC-49 SMD¾§Õñ |  | 13¡Á4.8¡Á4 /3mm | 3MHz~100MHz | ¡À10~¡À50ppm, »ò¶¨ÖÆ | -40~+85¡æ | |
| UM-1¾§Õñ |  | 7.8¡Á3.2¡Á6.9 | 4MHz~200MHz | ¡À10~¡À50ppm, »ò¶¨ÖÆ | -20~+70¡æ | |
| Ô²Öù¾§Õñ |  | 2¡Á6 / 3¡Á8 / 3¡Á9 | 3.579MHz~50MHz | ¡À30ppm, »ò¶¨ÖÆ | -20~+70¡æ | |
Éù±íгÕñÆ÷
| Series | Photo | Size(L¡ÁW¡ÁH)[mm] | Frequency Range | Frequency Tolerance | Operature Temperature | Insert Loss | Data Sheet |

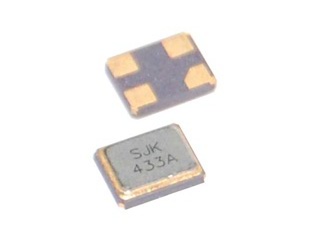

| SMD 3225Éù±íÃ沨гÕñÆ÷ |  | 3.2*2.5*0.6 | 433.92MHz | ¡À75KHz | -40~+85¡æ | 1.5dB | |
ÓÐÔ´¾§Õñ
| Series | Photo | Size(L¡ÁW¡ÁH)[mm] | Frequency Range | Frequency Tolerance | Operature Temperature | Output Type | Supply Voltage | Data Sheet |
| SMD 2016ÓÐÔ´¾§Õñ |  | 2.0¡Á1.6¡Á0.75 | 4MHz~54MHz | ¡À25ppm, ¡À50ppm | -40~+85¡æ | CMOS | 1.8~3.3V | |
| SMD 2520ÓÐÔ´¾§Õñ |  | 2.5¡Á2.0¡Á0.8 | 4MHz~75MHz | ¡À25ppm, ¡À50ppm | -40~+85¡æ | CMOS | 1.8~3.3V | |
| SMD 3225¾§ÌåÕñµ´Æ÷ |  | 3.2¡Á2.5¡Á1.0 | 1MHz~125MHz | ¡À25ppm, ¡À50ppm | -40~+85¡æ | CMOS | 1.8~3.3V | |
| SMD 5032ÓÐÔ´¾§Õñ |  | 5.0¡Á3.2¡Á1.2 | 1MHz~150MHz | ¡À25ppm~¡À50ppm | -40~+85¡æ | CMOS | 1.8~5.0V | |
| SMD 7050¾§ÌåÕñµ´Æ÷ |  | 7.0¡Á5.0¡Á1.3 | 1MHz~170MHz | ¡À25ppm~¡À50ppm | -40~+85¡æ | CMOS | 1.8~5.0V | |
| ÌùƬÖÓÕñCMOS |  | 14.0¡Á9.0¡Á5.4 | 1MHz~170MHz | ¡À50ppm | -20~+70¡æ | CMOS | 1.8~5.0V | |
| °ë³ß´ç¾§ÌåÕñµ´Æ÷ |  | 12.9¡Á12.9¡Á5.3 | 0.25MHz~18MHz | ¡À10ppm~¡À100ppm | -20~+70¡æ | CMOS | 3.3V /5.0V | |
| È«³ß´ç¾§ÌåÕñµ´Æ÷ |  | 20.4¡Á13.1¡Á5.3 | 0.25MHz~180MHz | ¡À10ppm~¡À100ppm | -20~+70¡æ | CMOS | 3.3V /5.0V | |
VCXO
| Series | Photo | Size(L¡ÁW¡ÁH)[mm] | Frequency Range | Frequency Tolerance | Operature Temperature | Output Type | Supply Voltage | Data Sheet |
| SMD 5032ѹ¿Ø¾§ÌåÕñµ´Æ÷ |  | 5.0¡Á3.2¡Á1.2 | 50MHz~200MHz | ¡À25ppm, ¡À50ppm | -20~+70¡æ | CMOS | 3.3V | |
| SMD 7050ѹ¿Ø¾§ÌåÕñµ´Æ÷ |  | 7.0¡Á5.0¡Á1.3 | 1MHz~200MHz | ¡À25ppm, ¡À50ppm | -20~+70¡æ | CMOS | 3.3V | |
| ÌùƬVCXOѹ¿Ø¾§ÌåÕñµ´Æ÷ |  | 14.0¡Á9.0¡Á5.4 | 50MHz~700MHz | ¡À50ppm, »ò¶¨ÖÆ | -20~+70¡æ | CMOS | 3.3V | |
TCXO
| Series | Photo | Size(L¡ÁW¡ÁH)[mm] | Frequency Range | Temperature characteristics | Operature Temperature | Output Type | Supply Voltage | Data Sheet |
| 7X |  | 2.0¡Á1.6¡Á0.75 | 26~52MHz | ¡À0.2ppm | -30~+85¡æ | Clipped Sinewave | 1.8~3.3V | |
| SMD 2520 TCXO(β¹¾§ÌåÕñµ´Æ÷) |  | 2.5¡Á2.0¡Á0.8 | 13MHz~52MHz | ¡À0.2ppm | -30~+85¡æ | Clipped Sinewave(ÕýÏÒ²¨) | 1.8~3.3V | |
| SMD 3225 TCXO(β¹¾§ÌåÕñµ´Æ÷) |  | 3.2¡Á2.5¡Á1.0 | 13MHz~52MHz | ¡À0.2ppm | -30~+85¡æ | Clipped Sinewave(ÕýÏÒ²¨) | 1.8~3.3V | |
| 5T |  | 5.0¡Á3.2¡Á1.5 mm | 5~52MHz | ¡À0.2ppm | -40~+85¡æ | CMOS/Clipped Sinewave | 2.7V~5.5V | |
| 8T |  | 7.0¡Á5.0¡Á2.0 mm | 5~52MHz | ¡À0.2ppm | -30~+85¡æ | CMOS/Clipped Sinewave | 2.7V~5.5V | |
OCXO
| Series | Photo | Size(L¡ÁW¡ÁH)[mm] | Frequency Range | Frequency Tolerance | Output Type | Supply Voltage | Data Sheet |
| OCXOºãξ§Õñ |  | 25.4¡Á25.4¡Á12.7 | 5MHz~100MHz | ¡À0.2ppm×î´ó | Sine Wave | 3.3V/5.0V | |
| ºãξ§ÌåÕñµ´Æ÷ |  | 36.3¡Á27.2¡Á12.7 | 5MHz~40MHz | ¡À5ppb ×î´ó | HCMOS /Sine Wave | 3.3V~12V | |
| SMD OCXO(ÌùƬºãξ§Õñ) |  | 14.3¡Á9.3¡Á6.0 | 5MHz~40MHz | ¡À50ppb~¡À200ppb | HCMOS | 3.3V/5.0V |
²î·Ö¾§ÌåÕñµ´Æ÷
| Series | Photo | Size(L¡ÁW¡ÁH)[mm] | Frequency Range | Frequency Tolerance | Output Type | Supply Voltage | Data Sheet |
| SMD 5032²î·ÖLVDSÓÐÔ´¾§Õñ |  | 5.0¡Á3.2¡Á1.2 | 25MHz~200MHz | ¡À50ppm, »ò¶¨ÖÆ | LVDS | 2.5V/3.3V | |

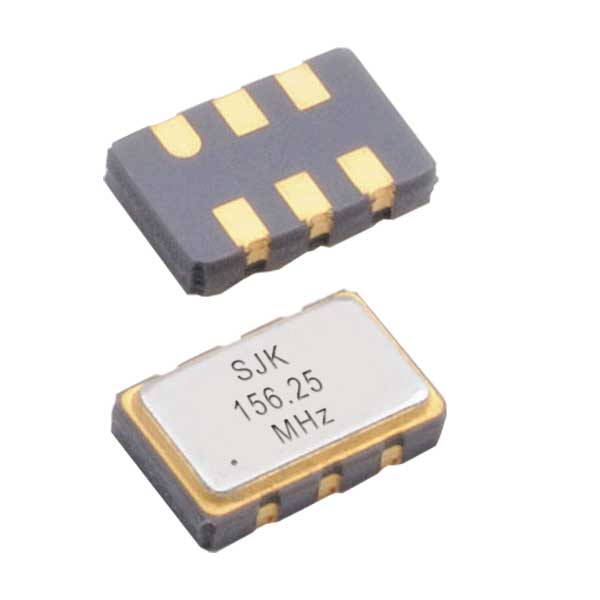

| SMD 5032²î·Ö¾§Õñ |  | 5.0¡Á3.2¡Á1.20 | 25MHz~200MHz | ¡À20ppm, »ò¶¨ÖÆ | LVPECL | 2.5V/3.3V | |
| SMD 5032²î·ÖHCSL¾§ÌåÕñµ´Æ÷ |  | 5.0¡Á3.2¡Á1.2 | 25MHz~200MHz | ¡À30ppm, »ò¶¨ÖÆ | HCSL | 2.5V/3.3V | |

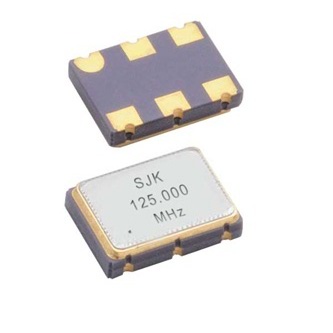

| SMD 7050²î·Ö¾§Õñ |  | 7.0¡Á5.0¡Á1.3 | 25MHz~700MHz | ¡À50ppm, »ò¶¨ÖÆ | LVDS | 2.5V/3.3V | |
| SMD 7050²î·ÖLVPECL¾§ÌåÕñµ´Æ÷ |  | 7.0¡Á5.0¡Á1.3 | 25MHz~200MHz | ¡À30ppm, »ò¶¨ÖÆ | LVPECL | 2.5V/3.3V | |
| SMD 7050²î·Ö¾§ÕñHCSLÊä³ö |  | 7.0¡Á5.0¡Á1.3 | 25MHz~200MHz | ¡À30ppm, »ò¶¨ÖÆ | HCSL | 2.5V/3.3V | |
| ÌùƬ²î·Ö¾§ÌåÕñµ´Æ÷ |  | 14.0¡Á9.0¡Á5.4 | 25MHz~200MHz | ¡À50ppm, »ò¶¨ÖÆ | LVPECL/LVDS | 2.5V/3.3V | |
32.768kHz¾§ÌåÕñµ´Æ÷
| Series | Photo | Size(L¡ÁW¡ÁH)[mm] | Frequency Range | Frequency Tolerance | Output Type | Supply Voltage | Data Sheet |

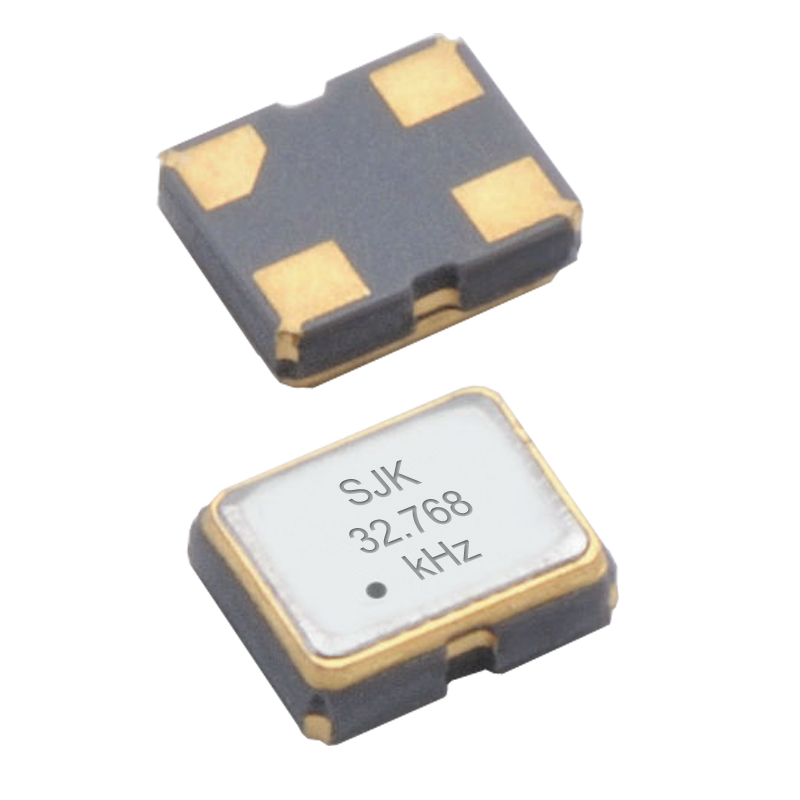

| OSC SMD 2520¾§ÕñÕñµ´Æ÷ |  | 2.5¡Á2.0¡Á0.90 | 32.768 kHz | ¡À25ppm, »ò¶¨ÖÆ | CMOS | 1.8V~3.3V | |
ÌùƬ¾§ÌåÂ˲¨Æ÷
| Series | Photo | Size(L¡ÁW¡ÁH)[mm] | Frequency Range | Operature Temperature | Pole | Data Sheet |
| CF Series |  | 7.0¡Á5.0¡Á1.3 | 20~130MHz | -20~+70¡æ | 4 | |
Ìմɾ§Õñ
| Series | Photo | Size(L¡ÁW¡ÁH)[mm] | Frequency Range | Frequency Tolerance | Temperature characteristics | Operature Temperature | Data Sheet |
| ZTT Series |  | DIP&SMD | 1.79~60.00MHz | ¡À0.5% | ¡À0.3% | -25~+85¡æ | |
| ZTA Series |  | ZTA-SMD | 2.00~60.00MHz | ¡À0.5% | ¡À0.3% | -25~+85¡æ | |
| ZTA Series |  | 10*10*5.0 | 1.79~60MHz | ¡À0.5% | ¡À0.3% | -25~+85¡æ | |
